Connecting a Microphone

You can connect a microphone to the projector's Mic port to provide audio support during presentations (EB-L210W/EB-L260F).
Note: The projector does not support plug-in-power microphones. If you want to output audio from the microphone when the projector is off, select Always On as the A/V Output setting in the Signal I/O menu.

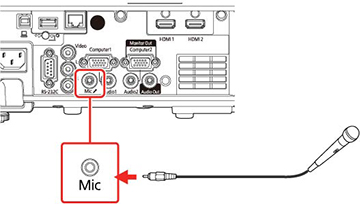

  1. Connect the microphone cable to the projector's Mic port.


  2. Turn on the microphone, if necessary.
  3. If you hear a crackling noise or the volume is too high or low, adjust the Mic Input Level setting in the Signal I/O menu.
Parent topic: Connecting External Output Devices
Related reference
Input Signal Settings - Signal I/O Menu
