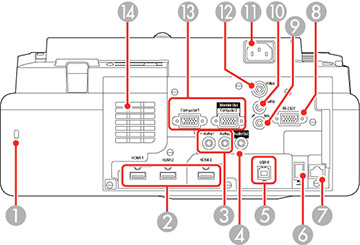

| 1 | Security slot |
| 2 | HDMI 1/HDMI 2/HDMI 3 ports |
| 3 | Audio 1/Audio 2 ports for use with the Computer 1/Computer 2 ports |
| 4 | Audio Out port |
| 5 | USB-B port for computer connection |
| 6 | USB-A port for USB memory device or document camera |
| 7 | Network (LAN) port |
| 8 | RS-232C port |
| 9 | Mic port (EB-760W/EB-770F) |
| 10 | Audio port for use with Video port |
| 11 | Power inlet |
| 12 | Video port |
| 13 | Computer 1 and Computer 2/Monitor Out ports |
| 14 | Air intake vent |
