Controlling a Networked Projector Using a Web Browser

Once you have connected your projector to your network, you can select projector settings and control projection using a compatible web browser. This lets you access the projector remotely.

Note: The web setup and control features support Microsoft Edge, Google Chrome, and Safari on networks that do not use a proxy server for connection. You cannot select all of the projector menu settings or control all projector functions using a web browser.

Note: If you set Standby Mode to Communication On in the Operation menu, you can use a web browser to select settings and control projection even if the projector is in standby mode (the power is off). The Standby Mode setting is displayed only if the A/V Output setting in the Signal I/O menu is set to While Projecting.

Make sure the projector is turned on.
Start your web browser on a computer or device connected to the network.
Type the projector's IP address into the browser's address box and press the computer's Enter key (if you are entering an IPv6 address, wrap the address with [ and ]).
Note: You can find the projector's IP address in the projector's Network menu or on the LAN input screen.

Note: If you attempt to connect to the Web Control screen via a proxy server, the screen will not be displayed. Make a direct connection to the Web Control screen.
You see a Web Control screen like this.

To control projection remotely, select the Basic Control option from the Web Control screen.

Note: If you see a log in window, enter your user name and Remote Password. (The default user name is EPSONREMOTE. You can change the Remote Password using the projector's Network Settings menu.)

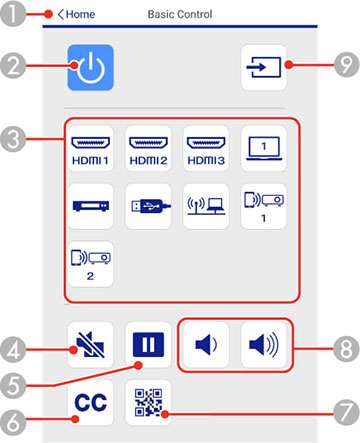

You see a screen like this:

1	Returns to the Epson Web Control screen
2	Power button control
3	Selects the input source
4	A/V Mute button control
5	Freeze button control
6	Displays closed captions
7	Displays a QR code for connecting with iOS or Android devices using the Epson iProjection app
8	Volume button controls
9	Searches for connected sources

Select the icon corresponding to the projector function you want to control.
To select projector menu settings, select Advanced on the Web Control screen.
Note: If you see a log in window, enter your user name and Web Control Password. (The default user name is EPSONWEB. You can change the Web Control Password using the projector's Network Settings menu. If you are prompted to set a Monitor Password, enter a password up to 16 characters long and then select Apply.)
Select the name of the menu and follow the on-screen instructions.
