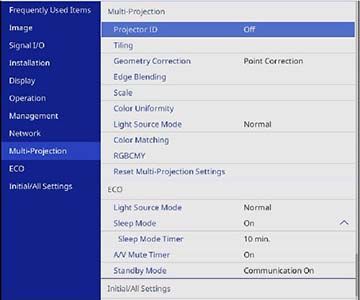

Settings on the Multi-Projection menu let you set up multiple projectors to project a single unified image.
| Setting | Options | Description |
|---|---|---|
| Projector ID | Off
1 through 9 |
Assigns an ID for the projector when you use multiple projectors |
| Tiling | Layout
Location Setup |
Sets the number of split screens and the position of each image |
| Geometry Correction | H/V-Keystone
Quick Corner Arc Correction Point Correction |
Adjusts image shape to rectangular (horizontally and
vertically)
H/V Keystone: lets you manually correct horizontal and vertical sides Quick Corner: select to correct image shape and alignment using an on-screen display Arc Correction: select to adjust the curve or arc of the horizontal and vertical sides Point Correction: select to divide the projected image into a grid and correct distortion by moving a selected point |
| Edge Blending | Edge Blending
Top Edge Bottom Edge Left Edge Right Edge Line Guide Pattern Guide Guide Color |
Blends the border between multiple images to create a seamless screen |
| Black Level | Color Adjustment
Area Correction Reset |
Adjusts the brightness and tone differences in overlapping images |
| Scale | Varying levels available | When using multiple projectors, adjusts the scale of the image displayed by each projector |
| Color Uniformity | Color Uniformity
Adjustment Level Start Adjustments Reset |
Adjusts the color tone balance
Color Uniformity: set to On to adjust the color tone balance for the whole screen Adjustment Level: sets the adjustment level Start Adjustments: adjusts the red, green, and blue color tones individually for the selected area Reset: resets all Color Uniformity adjustment values to their defaults |
| Light Source Mode | Normal
Quiet Extended Custom |
Selects the brightness mode of the projector when the
Maintain Brightness setting is
disabled
Normal: maximum brightness Quiet: 70% brightness with reduced fan noise Extended: 70% brightness and extends the life expectancy of the light source Custom: select a custom brightness level and enable use of the next setting |
| Color Matching | Adjustment Level
Red Green Blue Brightness |
Corrects the tint and brightness differences between images |
| RGBCMY | Varying levels available | Adjusts the hue, saturation, and brightness for each color |
| Reset Multi-Projection Settings | — | Resets all settings on the Multi-Projection menu to their default values |
