The distance at which you place the projector from the screen determines the approximate size of the image. The image size increases the farther the projector is from the screen, but can vary depending on the zoom factor, aspect ratio, and other settings.
Use the tables here to determine approximately how far to place the projector from the screen based on the size of the projected image. (Conversion figures may have been rounded up or down.) You can also use the Projection Distance Calculator here (U.S.) or here (Canada).

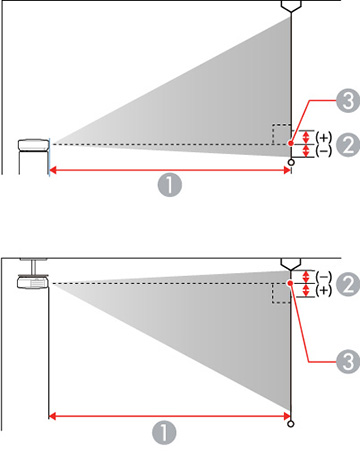

| 1 | Projection distance |
| 2 | Distance from the center of the lens to the base of the image |
| 3 | Center of lens |
| 16:9 Aspect Ratio Image or Screen | ||
|---|---|---|
| Screen or image size | Projection distance (1)
Wide to Tele |
Offset from lens center (2)
Wide to Tele |
| 31 inches | 34.6 to 56.3 inches
(88 to 143 cm) |
0 inches (0 cm) |
| 40 inches | 44.9 to 73.2 inches
(114 to 186 cm) |
0 inches (0 cm) |
| 60 inches | 68.11 to 110.2 inches
(173 to 280 cm) |
0 inches (0 cm) |
| 80 inches | 91.3 to 147.2 inches
(232 to 374 cm) |
0 inches (0 cm) |
| 100 inches | 114.2 to 184.3 inches
(290 to 468 cm) |
0 inches (0 cm) |
| 150 inches | 172 to 277.2 inches
(437 to 704 cm) |
-0.4 inches (-1 cm) |
| 200 inches | 229.5 to 369.7 inches
(583 to 939 cm) |
-0.4 inches (-1 cm) |
| 250 inches | 287.4 to 462.6 inches
(730 to 1175 cm) |
-0.4 inches (-1 cm) |
| 300 inches | 345.3 to 555.5 inches
(877 to 1411 cm) |
-0.4 inches (-1 cm) |
| 310 inches | 356.7 to 574 inches
(906 to 1458 cm) |
-0.4 inches (-1 cm) |
