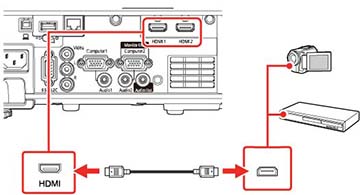

If
your video source has an HDMI port, you can connect it to the
projector using an HDMI cable (not
included). The HDMI connection provides the best image
quality.
Caution:
Do not turn on the video source before
connecting it to the projector. Doing so could damage the
projector.
- Connect the HDMI cable to your video source's HDMI output port.
-
Connect the other end to one
of the projector's HDMI
ports.
Note: The
projector converts the digital audio signal sent from your video
source into a mono analog signal for the internal speaker or a
stereo analog signal if you are connecting to external
speakers.
Note: If you
have problems hearing audio through the HDMI connection, you can
use one of the projector's audio ports instead to play sound.
Connect one end of an optional 3.5 mm stereo mini-jack audio cable
to one of the projector's audio ports and the other end to your
video source's audio out port. Then select the audio port you
connected to as the HDMI1 Audio
Output or HDMI2 Audio
Output setting in the Signal I/O menu.
