Using Frame Interpolation

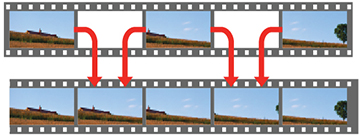

You can use the projector's Frame Interpolation feature to smooth fast-moving video by comparing consecutive image frames and inserting an intermediate image frame between them.


You can use this feature in any of the following conditions:
  • Edge Blending is set to Off in the projector's Multi-Projection menu.
    This setting is available when using one of the following input sources:
    • HDMI1
    • HDMI2
    • HDBaseT
  1. Press the Menu button.
  2. Select the Image menu and press Enter.

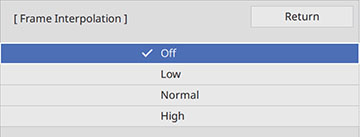

  3. Select the Frame Interpolation setting and press Enter. You see a screen like this:


  4. When you are finished, press the Menu button.
Note: If your resulting images contain noise, turn off the Frame Interpolation setting.
Parent topic: Using Basic Projector Features
