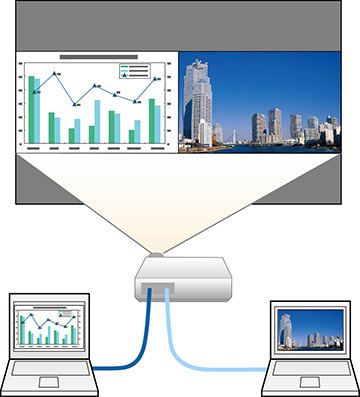

You
can use the split screen feature to simultaneously project two
images from different image sources next to each other.
You can control the split screen feature using the
remote control or the projector menus.
Note: While
you use the split screen feature, other projector features may not
be available and some settings may be automatically applied to both
images. You cannot perform split screen projection when the
Connect ELPCB02 setting is set to
On in the projector's
Installation menu. You cannot
perform split screen projection when the Content Playback setting is set to
On in the projector's
Operation menu. You may not be
able to perform split screen projection when you use the
Scale feature or the Edge Blending feature.

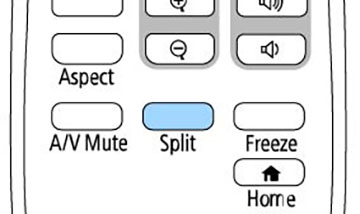

- Press the Split button on the remote control. The currently selected input source moves to the left side of the screen.

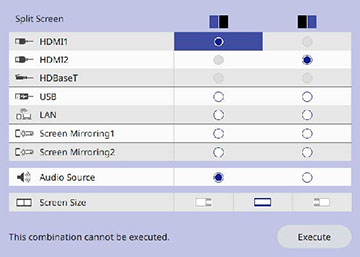

- Press the Menu button. You see this screen:
-
Select the input source, select the screen
from which you want to hear audio, select the screen size, and
press
Enter.
Note: You can only select input sources that can be combined. - To exit the split screen feature, press the Split or Esc button.
