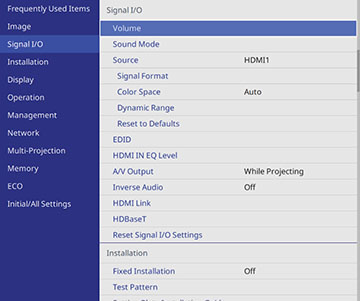

| Volume
|
Varying levels available |
Adjusts the volume of the projector's speaker system or
external speakers |
| Sound Mode
|
HDMI1
HDMI2
HDBaseT
USB Display
USB
LAN
Screen Mirroring1
Screen Mirroring2
|
Select your favorite mode for sound output from the
projector's speaker system according to the playback contents |
| Source
|
— |
Displays settings selected for the current input
source. To change settings for an input source, make sure the
source is connected and select that source |
| Signal Format
|
Video Range
|
Sets the video range to match the setting of input
source. Setting is only displayed when the current source is HDMI
or HDBaseT |
| Color Space
|
Auto
BT.709
BT.2020
|
Sets the conversion system for the color space. Setting
is only displayed in the following cases:
- Color Mode is not
set to DICOM SIM
- The current source is HDMI or HDBaseT
|
| Dynamic Range
|
Dynamic Range
|
Changes the range of dark and bright areas in images;
choose from Auto (recommended),
SDR, HDR10, or HLG. Setting is only displayed in the
following cases:
- Color Mode is not
set to DICOM SIM
- The current source is HDMI or HDBaseT
|
| Signal Status
|
Displays the detected input image signal. |
| HDR10 Setting
|
Changes the PQ (Perceptual Quantizer) curve of the
dynamic range using the HDR PQ method. This setting is only
displayed when Signal Status is
HDR10, or Dynamic Range is set to HDR10. |
| HLG Setting
|
Changes the HLG (Hybrid Log Gamma) curve of the dynamic
range using the HDR HLG method. This setting is only displayed when
Signal Status is HLG, or Dynamic
Range is set to HLG. |
| Reset to Defaults
|
— |
Resets all settings for current input source |
| EDID
|
EDID (HDMI1)
EDID (HDMI2)
EDID (HDBaseT)
|
Describes the display capabilities of your projector
when the selected input source is HDMI; change this setting as
necessary according to the resolution of the current input
source |
| HDMI IN EQ Level
|
HDMI1
HDMI2
|
Adjusts the HDMI input signal level depending on the
devices connected to the HDMI port; change the setting if there is
a lot of interference in the image or if no image is projected
Note: You can
select the settings for individual input sources without changing
the input source. |
| A/V Output
|
While Projecting
Always On
|
Determines when the projector outputs audio and images
to external devices; set to Always
On to output audio and images when the projector is in
standby mode
This setting is only displayed when Quick Startup is set to Off in the projector's Operation menu,
Auto Power On is set to
Off in the projector's Network
menu, or Auto Power On is set to
HDMI1 and Power On Trigger is set to Plug-in Detection in the projector's
Operation menu. |
| Inverse Audio
|
On
Off
|
Set to On to invert
the audio's left and right channels to match the projector
installation position. |
| HDMI Link
|
Device Connections
HDMI Link
Audio Out Device
Power On Link
Power Off Link
HDMI Out Power Link
HDMI Out Terminal
End
|
Adjusts the HDMI Link options that allow the projector
or remote to control HDMI-connected devices that support the CEC
standard
Device Connections:
lists the devices connected to the HDMI ports.
HDMI Link: enables
or disables the HDMI Link feature
Audio Out Device:
selects whether to output audio from the internal speakers or a
connected audio/visual system
Power On Link:
controls what happens when you turn on the projector or a linked
device
- Bidirectional:
automatically turns on the connected device when you turn on the
projector, and vice versa
- Device -> PJ:
automatically turns on the projector when you turn on the connected
device
- PJ -> Device:
automatically turns on the connected device when you turn on the
projector
Power Off Link:
controls whether linked devices are turned off when the projector
is turned off
HDMI Out Power Link:
Turns on or off devices connected to the HDMI Out port when you
turn the projector on or off.
HDMI Out Terminal
End: Selects whether to use the projector as the end
projector. |
| HDBaseT
|
Control
Communications
|
Enables or disables communication from the Ethernet and
serial ports on the HDBaseT transmitter or switcher; turning on
this setting disables the projector's LAN and RS-232C ports.
Setting is only displayed when Extron
XTP is set to Off. |
| Extron XTP
|
Set to On when you
connect an Extron XTP transmitter or switcher to the HDBaseT
ports. |
| Reset Signal I/O
Settings
|
— |
Resets all settings on the Signal I/O menu to their
default values |
