The distance at which you place the projector from the screen determines the approximate size of the image. The image size increases the farther the projector is from the screen, but can vary depending on the zoom factor, aspect ratio, and other settings.
If placing the projector on a desk or table, use the tables here to determine approximately how far to place the projector from the screen based on the size of the projected image. (Conversion figures may have been rounded up or down.) You can also use the Projection Distance Calculator here (U.S.), here (Canada), or here (Latin America).
If installing with the ELPMB75 wall mount, see the tables and follow the instructions in the online Installation Guide to install the projector.

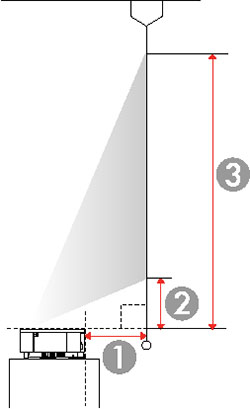

| 1 | Projection distance (from image to rear of projector) |
| 2 | Distance from top of projector to base of image |
| 3 | Distance from top of projector to top of image |
| 16:9 Aspect Ratio Image or Screen | |||
|---|---|---|---|
| Screen or image size | Projection distance (1)
Wide to Tele |
Offset from top of projector (2)
Wide to Tele |
Offset
from top of projector (3)
Wide to Tele |
| 80 inches (203.2 cm) | 0.9 to 5 inches
(2.3 to 12.8 cm) |
4.3 to 13.4 inches
(10.8 to 34 cm) |
43.5 to 52.6 inches
(110.4 to 133.6 cm) |
| 90 inches (228.6 cm) | 2.4 to 7 inches
(6 to 17.8 cm) |
5.1 to 15.3 inches
(12.8 to 38.9 cm) |
49.2 to 59.4 inches
(124.9 to 151 cm) |
| 100 inches (254 cm) | 3.8 to 9 inches
(9.8 to 22.9 cm) |
5.9 to 17.3 inches
(14.9 to 43.8 cm) |
54.9 to 66.3 inches
(139.4 to 168.3 cm) |
| 110 inches (279.4 cm) | 5.3 to 11 inches
(13.5 to 27.9 cm) |
6.7 to 19.2 inches
(16.9 to 48.8 cm) |
60.6 to 73.1 inches
(153.9 to 185.7 cm) |
| 120 inches (304.8 cm) | 6.8 to 13 inches
(17.3 to 33 cm) |
7.5 to 21.2 inches
(19 to 53.7 cm) |
66.3 to 80 inches
(168.4 to 203.1 cm) |
| 140 inches (355.6 cm) | 9.7 to 17 inches
(24.7 to 43.1 cm) |
9.1 to 25 inches
(23 to 63.6 cm) |
77.7 to 93.7 inches
(197.4 to 237.9 cm) |
| 160 inches (406.4 cm) | 12.7 to 20.9 inches
(32.2 to 53.2 cm) |
10.7 to 28.9 inches
(27.1 to 73.4 cm) |
89.1 to 107.3 inches
(226.4 to 272.7 cm) |
| 21:9 Aspect Ratio Image or Screen | |||
|---|---|---|---|
| Screen or image size | Projection distance (1)
Wide to Tele |
Offset from top of projector (2)
Wide to Tele |
Offset
from top of projector (3)
Wide to Tele |
| 76 inches (193 cm) | 0.9 to 5.1 inches
(2.3 to 12.8 cm) |
8.9 to 18.1 inches
(22.7 to 45.9 cm) |
38.9 to 48 inches
(98.8 to 122 cm) |
| 80 inches (203.2 cm) | 1.5 to 5.9 inches
(3.9 to 15 cm) |
9.5 to 19.1 inches
(24.2 to 48.6 cm) |
41 to 50.7 inches
(104.3 to 128.7 cm) |
| 90 inches (228.6 cm) | 3.1 to 8 inches
(7.9 to 20.3 cm) |
11 to 21.8 inches
(27.9 to 55.4 cm) |
46.4 to 57.3 inches
(118 to 145.4 cm) |
| 100 inches (254 cm) | 4.7 to 10.1 inches
(11.8 to 25.6 cm) |
12.5 to 24.5 inches
(31.6 to 62.1 cm) |
51.8 to 63.9 inches
(131.7 to 162.2 cm) |
| 110 inches (279.4 cm) | 6.2 to 12.2 inches
(15.8 to 31 cm) |
13.9 to 27.1 inches
(35.3 to 68.9 cm) |
57.2 to 70.5 inches
(145.4 to 179 cm) |
| 120 inches (304.8 cm) | 7.8 to 14.3 inches
(19.7 to 36.3 cm) |
15.4 to 29.8 inches
(39.1 to 75.7 cm) |
62.6 to 77.1 inches
(159.1 to 195.7 cm) |
| 130 inches (330.2 cm) | 9.3 to 16.4 inches
(23.7 to 41.6 cm) |
16.8 to 32.5 inches
(42.8 to 82.4 cm) |
68.1 to 83.7 inches
(172.9 to 212.5 cm) |
| 151 inches (383.5 cm) | 12.6 to 20.8 inches
(31.9 to 52.8 cm) |
19.9 to 38.1 inches
(50.6 to 96.6 cm) |
79.4 to 97.5 inches
(201.7 to 247.7 cm) |
