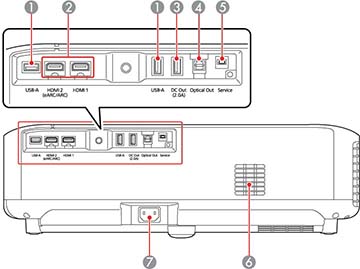

| 1 | USB-A port (for connecting an external USB device (such as a webcam, external HDD, or keyboard) or an RJ45 adapter to enable wired LAN connections) |
| 2 | HDMI1/HDMI2
(eARC/ARC) ports (inputs video signals from HDMI compatible
video equipment and computers)
Note: This product
is compatible with HDCP 2.3. The HDMI2 port is compatible with HDMI
eARC and ARC. |
| 3 | DC Out (2.0A) port (for connecting an optional streaming media player; USB data transfer is not available) |
| 4 | Optical Out port (outputs audio from the current input source to an external audio device) |
| 5 | Service port (for service technicians only; do not use) |
| 6 | Air intake vent (takes in air to cool the projector internally) |
| 7 | Power inlet (connects the power cord to the projector) |
