Projector Dimension Specifications

Height (excluding feet)	5.2 inches (133 mm)
Width	18.4 inches (467 mm)
Depth	15.7 inches (400 mm)
Weight	Approximately 16.31 lb (7.4 kg)

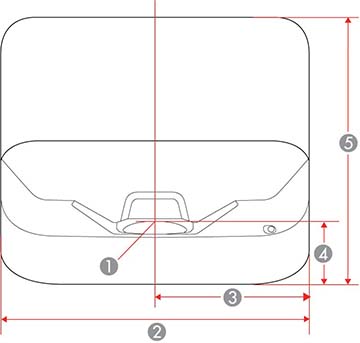

1	Center of projection window
2	18.4 inches (467 mm)
3	19.2 inches (233.5 mm)
4	3.6 inches (92.2 mm)
5	15.7 inches (400 mm)

1	7.6 inches (193 mm)
2	19.2 inches (233.5 mm)
3	1.9 inches (47.5 mm)
4	12.2 inches (311 mm)
5	5.7 inches (146 mm)
6	5.2 inches (133 mm)
7	6 inches (153 mm)
