Follow these
steps to change the height of the platen.
Note: If you are
printing on film, set the platen height to position P.
- If the
platen is not in the forward position, press the
moveable base button to move the

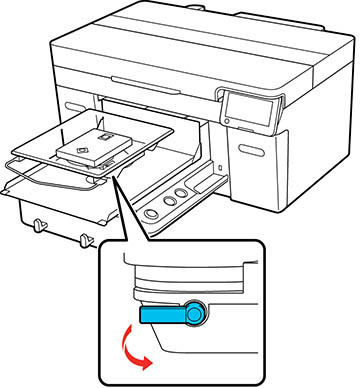

platen forward. - Loosen the fixing lever.

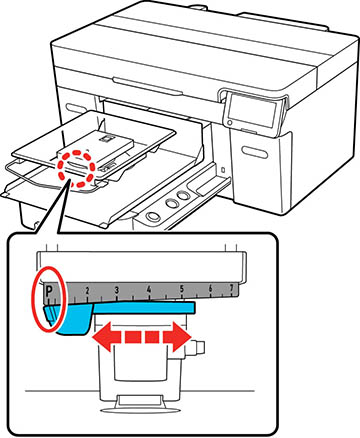

- Move the lever to set the scale to the desired position. Move the lever to the right to lower the platen. Move the lever to the left to raise the platen. When the scale is at position P, the platen is at its highest point.

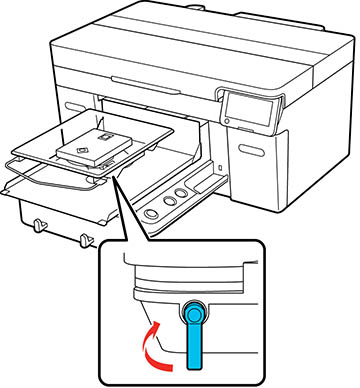

- Tighten the fixing lever and then secure the platen gap lever.
