Installing the Borderless Spacer

When you perform borderless printing on roll paper with the following widths, you may need to install the borderless spacer:

• A2 (16.5 in. [420 mm])
• US B (11 in. [279.4 mm])
• 8 in. (203.2 mm)

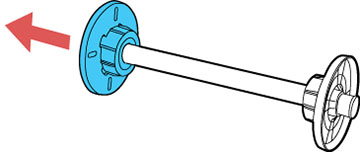

1. Remove the black paper stop from the spindle.



2. Remove any roll media adapters from the black and gray paper stops, if necessary.

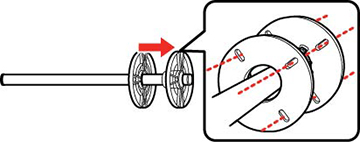

3. Slide the spacer all the way onto the spindle until it reaches the gray paper stop on the other end. Make sure the holes in the spacer and paper stop line up exactly.




To remove the spacer, remove the black paper stop from the spindle and then remove the spacer by holding its outer edge and pulling it straight off.
