Product Parts - Inside

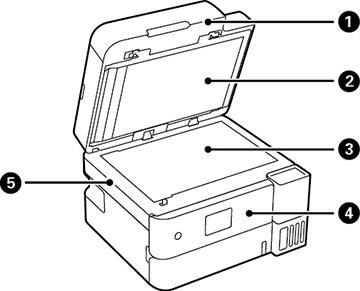

| 1 |
Document cover |
| 2 |
Document mat (M) |
| 3 |
Scanner glass |
| 4 |
Control panel |
| 5 |
Scanner unit |

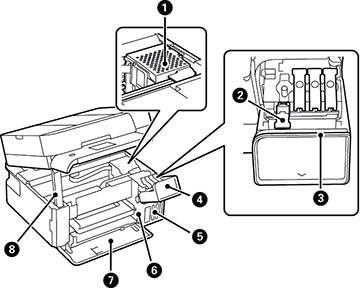

| 1 |
Printhead |
| 2 |
Ink tank cap |
| 3 |
Status light |
| 4 |
Ink tank cover |
| 5 |
Ink tanks |
| 6 |
Ink tank unit |
| 7 |
Front cover (C) |
| 8 |
Scanner unit support |
