Adjusting the Image Height

If you are projecting from a table or other flat surface, and the image is too high or low, you can adjust the image height using the projector's adjustable feet. You can adjust the tilt within a range of ±5°. The feet are detachable, and can be extended approximately 1.4 inches (35 mm).
  1. Turn on the projector and display an image.

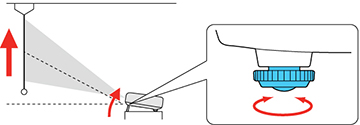

  2. To adjust the image height, rotate the front feet to extend or retract them.

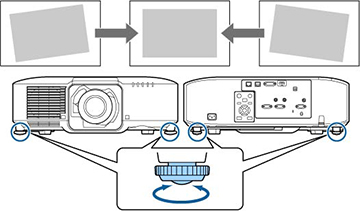

  3. If the image is tilted, rotate the front and rear feet to adjust their height.


If the projected image is unevenly rectangular, you need to adjust the image shape.
