Adjusting the Image Position Using Lens Shift

If you cannot install the projector directly in front of the screen, you can adjust the position of the projected image using the lens shift feature.

Turn on the projector and display an image.
Press the Lens Shift button on the remote control or the Lens button on the control panel.

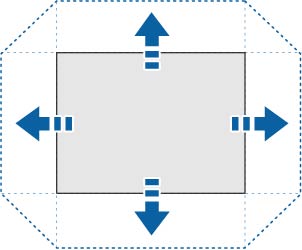

Press the arrow buttons on the remote control or the control panel to adjust the position of the projected image as necessary.

The distance the image can be shifted varies depending on the installed lens. The limits are described in the following table. You can shift the image up to the listed percentage of the image height or width.

Lens Vertical Horizontal

ELPLX02S
ELPLX02WS
+45%~70% ±15%

ELPLU03S
ELPLW05
±24% ±10%

ELPLU04
ELPLW06

ELPLW08

ELPLM10

ELPLM11

ELPLM15

ELPLL08
±60% ±18%
When you are finished, press the Esc button on the control panel or remote control.

Lens	Vertical	Horizontal
ELPLX02S ELPLX02WS	+45%~70%	±15%
ELPLU03S ELPLW05	±24%	±10%
ELPLU04 ELPLW06 ELPLW08 ELPLM10 ELPLM11 ELPLM15 ELPLL08	±60%	±18%

Note: When adjusting the image height, position the image lower than where you want it to be and then move it up. This will help prevent the image from moving down after adjustment. The image is clearest when the lens is at the home position. To move the lens to the home position, press and hold the Lens Shift button on the remote control or the Lens button on the control panel for at least three seconds.
