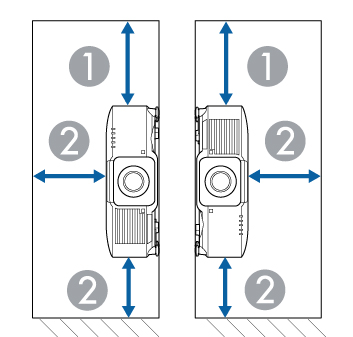

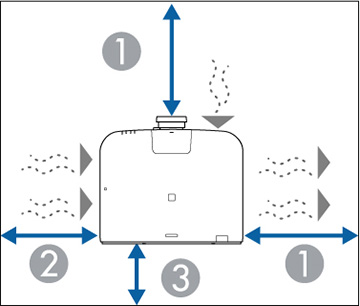

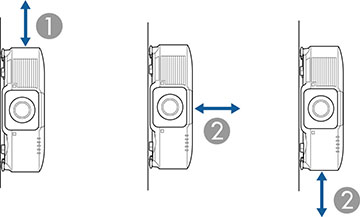

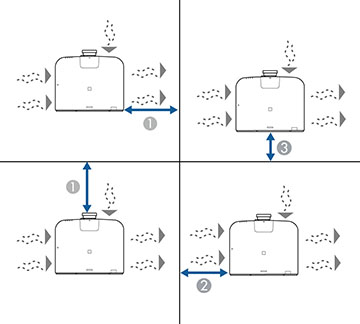

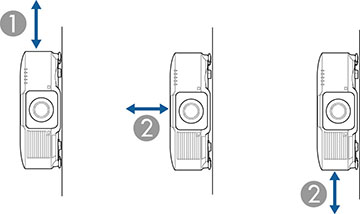

Be sure to leave the following amount of
space around the projector to avoid blocking the air exhaust and
intake vents. Do not install the projector in a location that does
not allow air to circulate, such as on a shelf or in a box.
If there is not enough space around the projector and the internal temperature of the projector increases, the brightness of the light source may decrease. Make sure hot air from the exhaust vent does not go into the air intake vent.
| 1 | 11.8 inches (30 cm) |
| 2 | 7.9 inches (20 cm) |
| 3 | 3.9 inches (10 cm) |
If you are installing multiple projectors next to
each other, be sure to leave at least 28 inches (70 cm) of space
between the projectors. Also, make sure heated air from an exhaust
vent does not go into the air intake vent of another projector.
| 1 | 28 inches (70 cm) |

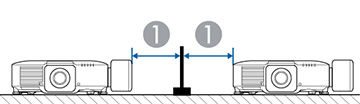

With a partition:
| 1 | 12 inches (30 cm) |

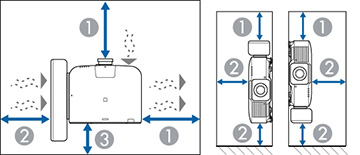

Installation space with the optional air filter installed:
If you are installing the optional air
filter to your projector, be sure to leave the following amount of
space around the projector to avoid blocking the air exhaust and
intake vents.
If there is not enough space around the projector and the internal temperature of the projector increases, the brightness of the light source may decrease. Make sure hot air from the exhaust vent does not go into the air intake vent.
| 1 | 11.8 inches (30 cm) |
| 2 | 7.9 inches (20 cm) |
| 3 | 3.9 inches (10 cm) |
| 4 | 29.5 inches (75 cm) |
