Labels are attached to the projector to indicate the level of risk when operating or servicing the projector.

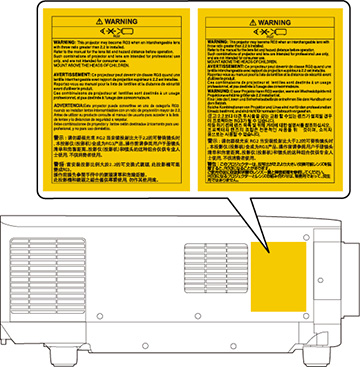

Side
WARNING: MOUNT ABOVE THE HEADS OF CHILDREN.
CAUTION: The EB-PQ2213B may become RG3 when interchangeable lenses ELPLM10, ELPLM11, or ELPLL08 are installed. The EB-PQ2216B and EB-PQ2216W may become RG3 when interchangeable lenses ELPLM10, ELPLM11, ELPLM15, or ELPLL08 are installed. Refer to the manual for the lens list and hazard distance before operation. Such combinations of projector and lens are intended for professional use only, and are not intended for consumer use. When installing this projector, always commission a professional installer and ensure the safety of the surrounding area.
| Lens | Throw ratio | EB-PQ2213B |
EB-PQ2216B/
EB-PQ2216W |
|---|---|---|---|
|
ELPLX02/ELPLX02S/
ELPLX02W/ELPLX02WS |
0.34 | RG2 | RG2 |
| ELPLU03/ELPLU03S | 0.46 - 0.56 | ||
| ELPLU04 | 0.62 - 0.75 | ||
| ELPLW05 | 0.74 - 1.04 | ||
| ELPLW08 | 0.83 - 1.17 | ||
| ELPLW06 | 1.15 - 1.57 | ||
| ELPLM08 | 1.02 - 1.64 | ||
| ELPLM09 | 1.52 - 2.47 | ||
| ELPLM15 | 1.52 - 2.47 | RG2 / RG3 | |
| ELPLM10 | 2.34 - 3.59 | RG3 | RG3 |
| ELPLM11 | 3.42 - 5.23 | ||
| ELPLL08 | 5.09 - 7.16 |
Protective housing label (located inside of projector)
CAUTION/DANGER:CLASS 4 LASER RADIATION WHEN OPEN. AVOID EYE OR SKIN EXPOSURE TO DIRECT OR SCATTERED RADIATION.
WARNING: Never open any covers on the projector except as specifically explained in the projector manual. Dangerous electrical voltages inside the projector can severely injure you.
- The use of a ceiling mount is recommended with this product to place it above the eyes of children.
- When turning on the projector at a distance using the remote control, make sure no one is looking into the lens.
- Do not allow small children to operate the projector. Children must be accompanied by an adult.
- Do not look into the lens during projection. Also, do not look into the lens using optical devices, such as a magnifying glass or telescope. This could cause visual impairment.
