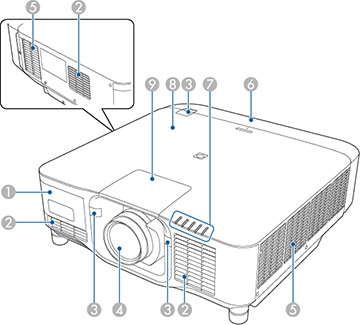

| Name | Function | |
| 1 | External camera cover | Open this cover to install the
optional external camera.
When using the ultra short-throw lens, install the optional external camera on the lens. |
| 2 | Air intake vent | Takes in air to cool the projector internally. |
| 3 | Remote receivers | Receive signals from the remote control |
| 4 | Projection lens | Projects images
Warning: Do
not look into the projection lens while projecting.
Caution:
Do not place any objects or put your hand
near the projection lens. It could cause burns, fire, or the object
to warp because this area reaches a high temperature due to the
concentrated projection light. |
| 5 | Air exhaust vents | Exhaust vent for air used to cool
the projector internally.
Caution:
While projecting, do not put your face or
hands near the air exhaust vent, and do not place objects that may
become warped or damaged by heat near the vent. Hot air from the
air exhaust vent could cause burns, warping, or accidents to
occur. |
| 6 | Cable cover | Cover for the rear interface ports |
| 7 | Projector status lights | Indicate the projector's status |
| 8 | NFC tag | Uses NFC technology to transfer
projector information through your mobile device.
The Projector Config Tool app lets you scan projector information and write settings. You can download the Projector Config Tool app for free from the App Store or Google Play. Any fees incurred when communicating with the App Store or Google Play are the responsibility of the customer. |
| 9 | Lens replacement cover |
Remove when attaching or removing the lens
Caution:
When moving the projector, do not hold
the lens replacement cover. The lens replacement cover may be
removed and the projector may fall, which could cause an
injury. |
