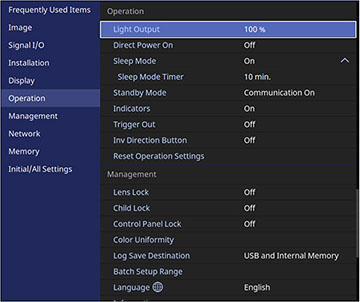

Settings on the Operation menu let you customize various projector features that control its operation. The available settings depend on the currently selected input source and other settings.
| Setting | Options | Description |
|---|---|---|
| Light Output | 50% (ECO) to 100% (Normal) | Sets the brightness for the light source |
| Direct Power On | On
Off |
Controls whether the projector automatically turns on when you plug it in |
| Sleep Mode | On
Off |
Automatically turns off the projector after an interval
of inactivity
Sleep Mode Timer: sets the time from 1 to 30 minutes before the projector automatically turns off |
| Standby Mode | Communication On
Communication Off |
Enable this setting to allow monitoring and control of the projector over a network when the projector is in standby mode |
| Indicators | On
Off |
Enables or disables the status indicator lights on the projector |
| Trigger Out | Off
Power Anamorphic Wide |
Power: outputs a DC
12V signal at 200 mA maximum from the Trigger Out port whenever the
projector is turned on (ideal for motorized screens)
Anamorphic Wide: voltage is only output from the Trigger Out port when the Aspect setting is set to Anamorphic Wide or Horiz.Squeeze (ideal for anamorphic lens kits and mechanical screens that can change their aspect ratio) |
| Inv Direction Button | On
Off |
Inverts the direction of the arrow buttons on the control panel to match the projector's installation position |
| Reset Operation Settings | — | Reset all settings on the Operation menu to their default values |
