Projector Setup and Installation Options

You can set up or install your projector in the following ways:

Front

Rear

Front Ceiling

Rear Ceiling

Wherever you set up the projector, make sure to position it squarely in front of the center of the screen, not at an angle, if possible. If the projector cannot be centered in front of the screen, use lens shift to reposition the image instead of using keystone correction for better image quality.

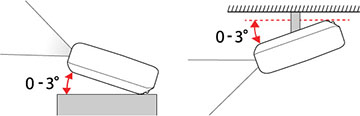

Note: If you use the projector tilted at an angle of more than three degrees, it could be damaged and cause an accident.

If you project from the ceiling or from the rear, be sure to select the correct Projection setting in the projector's Installation menu. If necessary, enable the Inv Direction Button setting in the projector's Operation menu.
