Attaching and Removing the Cable Cover

You can attach the cable cover that came with your projector to hide the attached cables from view.
  1. Carefully place the projector upside down on a flat, stable surface.

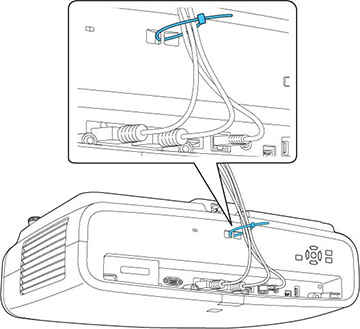

  2. Bundle the cables together using a band or other fastener (not provided) and pass it through the cable holder as shown.


    Caution:
    Do not bundle the power cord to the other cables. Otherwise, a fire may occur.

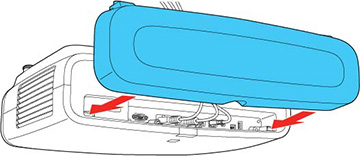

  3. Place the cable cover on the projector as shown, guiding the cables through the notch on the base of the cable cover. Make sure the cable cover screws fit into the holes on the projector.

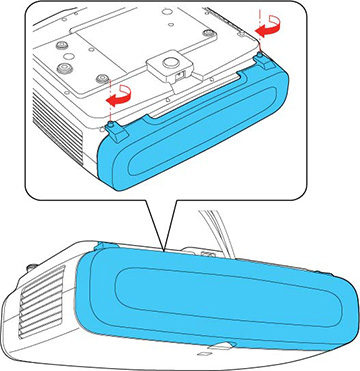

  4. Tighten both cable cover screws.


To remove the cover, loosen both screws and pull the cover off of the projector.

Parent topic: Setting Up the Projector
