| Height (excluding feet) | 6.7 inches (169 mm) |
| Width | 20.5 inches (520 mm) |
| Depth | 17.6 inches (447 mm) |
| Weight | Approximately 28.2 lb (12.8 kg) |
For mounting

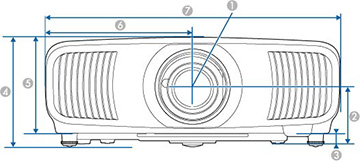

| 1 | Center of lens |
| 2 | Distance from center of lens to suspension bracket fixing point: 3.8 inches (96.1 mm) |
| 3 | 0.7 inches (17.1 mm) |
| 4 | 7.6 inches (192.7 mm) |
| 5 | 6.7 inches (169 mm) |
| 6 | 10.2 inches (260 mm) |
| 7 | 20.5 inches (520 mm) |

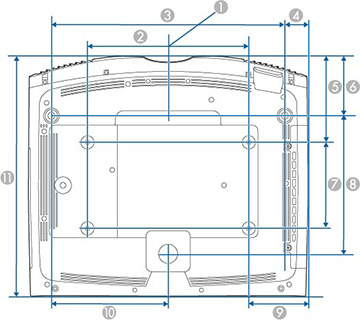

| 1 | Center of lens |
| 2 | 11.8 inches (300 mm) |
| 3 | 17.1 inches (434 mm) |
| 4 | 1.7 inches (43 mm) |
| 5 | 6.3 inches (160.6 mm) |
| 6 | 4.4 inches (111 mm) |
| 7 | 6.3 inches (160 mm) |
| 8 | 10.1 inches (257.2 mm) |
| 9 | 4.3 inches (110 mm) |
| 10 | 8.5 inches (217 mm) |
| 11 | 17.6 inches (447 mm) |
