Adjusting the Image Height (EF21)

If you are projecting from a table or other flat surface and the image is too high or low, you can adjust the image using the projector's adjustable foot.

The larger the angle of tilt, the harder it becomes to focus. Locate the projector so that it only needs to be tilted at a small angle.

1. Turn on the projector and display an image.

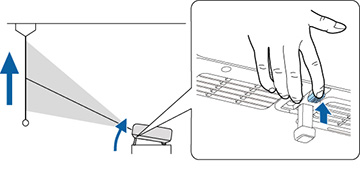

2. Press the foot release lever to extend and retract the front adjustable foot.


   The foot extends from the projector. You can adjust the position up to 9°.

3. Release the lever to lock the foot.

If the projected image is unevenly rectangular, you need to adjust the image shape.
