The distance at which you place the projector from
the screen determines the approximate size of the image. The image
size increases the farther the projector is from the screen, but
can vary depending on the zoom factor, aspect ratio, and other
settings.
Note: When correcting keystone distortion, your
image is slightly smaller.
Use the tables here to determine approximately how far to place
the projector from the screen based on the size of the projected
image. (Conversion figures may have been rounded up or down.) You
can also use the Projection Distance Calculator here
(U.S.), here (Canada), or here
(Latin America).

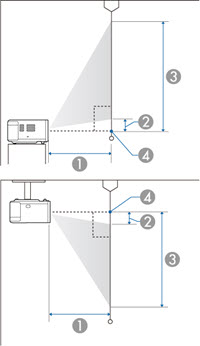

| 1 |
Projection distance |
| 2 |
Distance from the center of the
lens to the base of the screen. |
| 3 |
Distance from the projector to the
top of the screen |
| 4 |
Center of lens |
| 16:9 Aspect
Ratio Image or Screen |
| Screen or
image size |
Projection
distance (1) |
Distance from
center of lens to base of screen (2) |
Distance from center of lens to top of screen (3) |
| 30 inches |
25 inches (64 cm) |
0 inches (0 cm) |
15 inches (37 cm) |
| 40 inches |
34 inches (87 cm) |
0 inches (0 cm) |
20 inches (50 cm) |
| 50 inches |
43 inches (110 cm) |
0 inches (0 cm) |
25 inches (62 cm) |
| 60 inches |
52 inches (132 cm) |
0 inches (0 cm) |
30 inches (75 cm) |
| 70 inches |
61 inches (155 cm) |
0 inches (0 cm) |
34 inches (87 cm) |
| 80 inches |
70 inches (178 cm) |
0 inches (0 cm) |
39 inches (100 cm) |
| 90 inches |
79 inches (201 cm) |
0 inches (0 cm) |
44 inches (112 cm) |
| 100 inches |
88 inches (224 cm) |
0 inches (0 cm) |
49 inches (125 cm) |
| 120 inches |
106 inches (269 cm) |
0 inches (0 cm) |
59 inches (149 cm) |
| 150 inches |
133 inches (337 cm) |
0 inches (0 cm) |
74 inches (187 cm) |
| 16:10 Aspect
Ratio Image or Screen |
| Screen or
image size |
Projection
distance (1) |
Distance from
center of lens to base of screen (2) |
Distance from center of lens to top of screen (3) |
| 30 inches |
28 inches (70 cm) |
0 inches (0 cm) |
16 inches (40 cm) |
| 40 inches |
37 inches (94 cm) |
0 inches (0 cm) |
21 inches (54 cm) |
| 50 inches |
47 inches (119 cm) |
0 inches (0 cm) |
27 inches (67 cm) |
| 60 inches |
57 inches (144 cm) |
0 inches (0 cm) |
32 inches (81 cm) |
| 70 inches |
66 inches (168 cm) |
0 inches (0 cm) |
37 inches (94 cm) |
| 80 inches |
76 inches (193 cm) |
0 inches (0 cm) |
43 inches (108 cm) |
| 90 inches |
86 inches (217 cm) |
0 inches (0 cm) |
48 inches (121 cm) |
| 100 inches |
96 inches (242 cm) |
0 inches (0 cm) |
53 inches (135 cm) |
| 120 inches |
115 inches (291 cm) |
0 inches (0 cm) |
64 inches (162 cm) |
| 130 inches |
125 inches (316 cm) |
0 inches (0 cm) |
69 inches (175 cm) |
| 140 inches |
134 inches (341 cm) |
0 inches (0 cm) |
74 inches (188 cm) |
| 4:3 Aspect
Ratio Image or Screen |
| Screen or
image size |
Projection
distance (1) |
Distance from
center of lens to base of screen (2) |
Distance from center of lens to top of screen (3) |
| 30 inches |
32 inches (79 cm) |
0 inches (0 cm) |
18 inches (46 cm) |
| 40 inches |
43 inches (107 cm) |
0 inches (0 cm) |
24 inches (61 cm) |
| 50 inches |
54 inches (135 cm) |
0 inches (0 cm) |
30 inches (76 cm) |
| 60 inches |
64 inches (163 cm) |
0 inches (0 cm) |
36 inches (91 cm) |
| 70 inches |
75 inches (191 cm) |
0 inches (0 cm) |
42 inches (107 cm) |
| 80 inches |
86 inches (219 cm) |
0 inches (0 cm) |
48 inches (122 cm) |
| 90 inches |
97 inches (247 cm) |
0 inches (0 cm) |
54 inches (137 cm) |
| 100 inches |
108 inches (275 cm) |
0 inches (0 cm) |
60 inches (152 cm) |
| 120 inches |
130 inches (330 cm) |
0 inches (0 cm) |
72 inches (183 cm) |
