If
your external speakers or A/V receiver are HDMI ARC-compatible, you
can connect them to the projector's port using an optional HDMI
cable.
Note:
- To output audio, set HDMI
control to On in the
projector's menu.
- Inputs > Inputs > HDMI
control
- If audio is not output properly, try changing Auto to PCM as
the Digital Output setting in the
projector's menu.
- Display & Sound > Audio Output
> Digital Output
- When playing Google TV contents, audio is output in 2 ch
(L-PCM).
- The following audio output formats are compatible with the HDMI
(ARC) port:
- L-PCM 2 ch (48kHz/24bit)
- Dolby Digital(AC-3)
- Dolby Digital Plus
- AAC
Note: You can pass-through HDMI audio signals
with ARC when using an HDMI cable (with Ethernet). The audio format
is determined by the specifications of the connected AV system or
external speakers such as a sound bar.
-

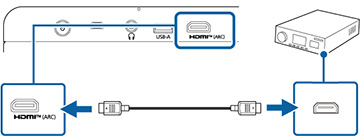

Connect the HDMI cable to the ARC-compatible HDMI port on
your external speakers or A/V receiver.
-
Connect the other end to the HDMI (ARC) port on the projector.
