Installing the Projector on a Tripod or Projector Stand

You can mount the projector on a commercially available tripod or projector stand.

You can install the projector on a tripod that uses 1/4-20UNC size fixed screws.
When installing the projector in a high place, be sure to install the optional security wire set (ELPWR01) for safety purposes.

Turn the projector upside down.

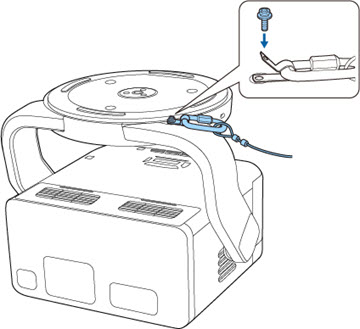

When installing the projector in a high place, attach the optional security wire set (ELPWR01) to the security cable attachment point.

EF21

EF22
Mount the projector on a tripod or a projector stand. For details, see the documentation supplied with the tripod or projector stand.
Warning: When mounting the projector on the tripod, note the following points:
- Use a tripod that is strong enough to support the weight of the projector.
- Securely tighten the tripod's screw into the projector's mounting hole. If the screw loosens, the projector could fall or topple causing an accident and injury.
- Do not carry the projector while it is mounted on a tripod. Doing so will put too much pressure on the tripod fixing point and the projector could fall or topple causing an accident and injury.
- Place the tripod on a flat and stable surface. Otherwise, the tripod could topple causing an accident and injury.
- For details on how to use the tripod, see the documentation supplied with the tripod.
Note: When installing the projector in a high place such as a ceiling, make sure you hook the carabiner of the optional security wire set (ELPWR01) to a point that is strong enough to hold the weight of the projector and the mounting hardware.
