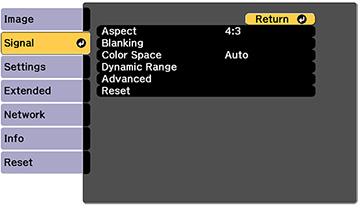

| Aspect
|
See the list of available aspect ratios |
Sets the aspect ratio (width-to-height ratio) |
| Blanking
|
Top
Bottom
Left
Right
|
Hides images in the specified area
Use the arrow buttons on the control panel or remote
control to adjust the area. You can hide up to half of the
projected image in each direction (except for one pixel).
Note: This setting is only displayed when the
Content Playback setting is set to
Off in the projector's Settings menu. |
| Color Space
|
Various settings available |
Switches the color space that can handle the color
information of the input image
Select Auto to apply a suitable
color space for the AVI InfoFrame of the image |
| Dynamic Range
|
Dynamic Range
Signal Status
HDR10 Setting
HLG Setting
|
Sets the video range to match the setting of input
source
Dynamic Range: changes the range
of dark and bright areas in the image (set to Auto for most cases)
Signal Status: displays the
detected input signal
HDR10 Setting: adjusts the PQ
curve of the dynamic range in the HDR PQ (Perceptual Quantizer)
method (available only when Dynamic
Range or Signal Status is set
to HDR10)
HLG Setting: adjusts
the HLG curve of the dynamic range in the HDR HLG (Hybrid Log
Gamma) method (available only when Dynamic
Range or Signal Status is set
to HLG)
Note: HLG HDR is for Broadcast content
only. |
| Advanced >
Video Range |
Limited (16-235)
Full (0-255)
|
Sets the video range to match the setting of input
source from the HDMI port
Limited (16-235): for the color
tone range 16 to 235
Full (0-255): for the color tone
range 0 to 255 |
| Advanced >
EDID |
EDID Mode
Reset
|
Describes the display capabilities of your projector
(if images are not displayed correctly, you may be able to display
them by changing this setting)
Even if you setup multiple displays with different resolutions,
you can set the same EDID as the standard display and switch the
EDID of the current source to unify the EDID across the
displays.
You can set the EDID options as a batch using preset
values. The following settings are saved in the preset
options:
- Resolution
- Refresh Rate
- Color Depth
You can change the preset settings, if necessary. Select Reset to reset all
adjustment values for EDID to their
default values. |
| Advanced >
Image Processing |
Auto (ALLM)
Fine
Fast
|
Improves the response speed for images projected at
high speed (only available when EDID
Mode is set to Up to 4K 120Hz
40Gbps or 2560x1080(21:9))
The Source device enables ALLM. If the source supports ALLM,
then the ALLM feature should be listed as "on" in the projector's
Info menu.
Auto (ALLM): automatically
adjusts the response speed according to your projected content
Fine: improves the response speed
for images (Frame Interpolation in
the Image menu must be turned off)
Fast: disables the Frame Interpolation setting |
| Reset
|
— |
Resets all the adjustment values (except for the EDID
settings) in the Signal menu back to the default settings |
