You can set up or install your projector in the following ways:

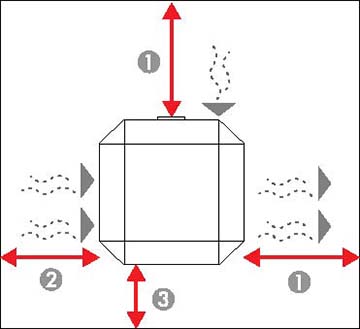

Be sure to leave the following amount of space
around the projector to avoid blocking the air exhaust and intake
vents. Do not install the projector in a location that does not
allow air to circulate, such as on a shelf or in a box.
If there is not enough space around the projector and the internal temperature of the projector increases, the brightness of the light source may decrease. Make sure hot air from the exhaust vent does not go into the air intake vent.
| 1 | 11.8 inches (30 cm) |
| 2 | 7.9 inches (20 cm) |
| 3 | 3.9 inches (10 cm) |

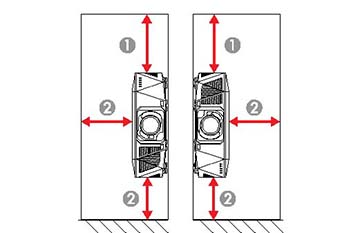

If you are installing multiple projectors next to
each other, be sure to leave at least 28 inches (70 cm) of space
between the projectors. Also, make sure heated air from an exhaust
vent does not go into the air intake vent of another
projector.
| 1 | 28 inches (70 cm) |
| 1 | 12 inches (30 cm) |
You can mount the projector to the ceiling at any horizontal or vertical angle.
