Adjusting the Image Height

If you are projecting from a table or other flat surface, and the image is too high or low, you can adjust the image height using the projector's adjustable feet. Make sure the feet have been installed.
Caution:
Tilting the projector will distort the image shape and may cause difficulty focusing the image. For interactive use, make sure the projector is not tilted an an angle of more than ± 3º vertically or horizontally.
  1. Turn on the projector and display an image.
  2. To raise the image, extend the rear feet by rotating them.

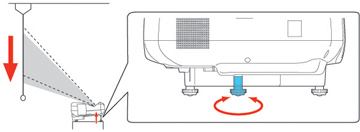

  3. To lower the image, extend the front foot by rotating it.

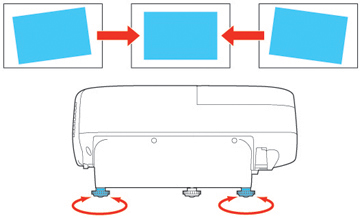

  4. If the image is tilted, rotate the rear feet to adjust their height.


If the projected image is unevenly rectangular, you need to adjust the image shape.
