Printing / Basic Printing Information

Loading Envelopes

Follow the steps below to load envelopes into the sheet feeder.

Slide out the extension tray.

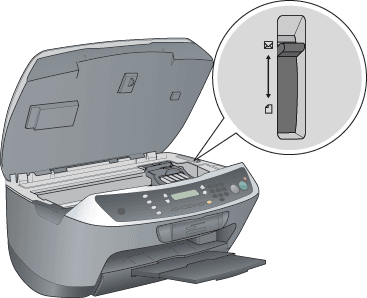

Set the adjust lever to the  position.

Note:

Return the adjust lever to the standard  position after printing envelopes. If the adjust lever is not returned to the  position, the print speed when printing single sheets will decrease, and the print quality may decline.

When the adjust lever is in the  position, make sure that the High Speed checkbox in the printer driver's Advanced dialog box is cleared. To clear this checkbox, you may also need to change the Print Quality setting.

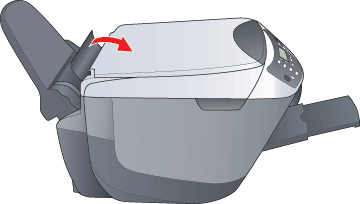

Move the feeder guard towards you.

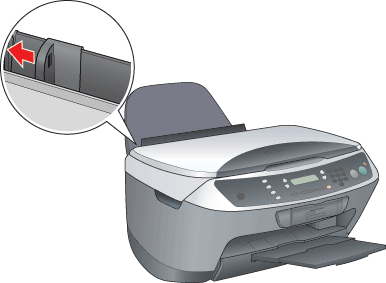

Slide the left edge guide so that the distance between the two edge guides is slightly wider than the width of your envelopes.

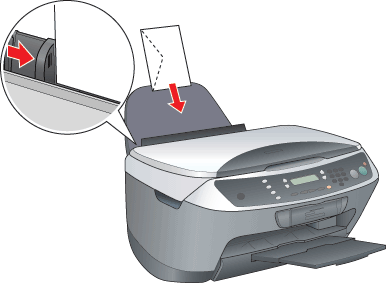

Load envelopes short edge first with the flap side to the left, then slide the left edge guide to fit the width of the envelopes, as shown in the illustration.

Note:

You can load up to 10 envelopes at a time in the sheet feeder.

Set the feeder guard back.

Return adjust lever to the standard  position after printing envelopes.

Note:

If you are going to print a large number of envelopes, first try printing one sheet to confirm that it can be printed properly. You can then print the rest of the sheets.

The folding quality and thickness of envelopes vary widely. If the total thickness of the stack of envelopes exceeds 10 mm, press each envelope in the stack flat before loading. If print quality declines when a stack of envelopes is loaded, load one envelope at a time.

Do not use envelopes that are curled or folded.

Flatten the envelope flaps before loading.

Flatten the loading edge of the envelope before loading.

Avoid using envelopes that are too thin as they may curl during printing.

Do the following if paper cannot be fed properly. Feed envelopes with the flap side on the right side and select the Rotate 180° checkbox on the Page Layout menu (Windows) or the Rotate by 180 degrees checkbox in the Page Setup dialog box (Macintosh). Press the four corners of the envelopes firmly with your fingers to make the envelopes flat.
