Using Options / Using the Network Image Express Card

Installing the Network Image Express Card

The EPSON Network Image Express Card (B12B808393) enables an Epson scanner supporting network functions to be used on a network. This is an alternative to having the scanner connected to a server PC. For information on how to use it, refer to the documentation supplied with the EPSON Network Image Express Card.

Note:
Do not install other option cards except the EPSON Network Image Express Card (B12B808393); otherwise damage may occur.

Turn off the scanner. Unplug the power cord, and then disconnect all cables from the back panel of your scanner.

Remove the two screws using a cross-head screwdriver, and then remove the shield plate. Be sure to keep both screws; you may need to use them again if you re-install the shield plate.

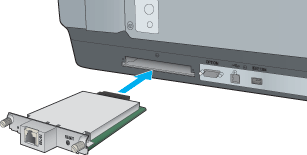

Insert the Network Image Express Card in your scanner's optional interface slot and then tighten the screws.

Caution:
Do not install or uninstall the Network Image Express Card from the scanner while the scanner is turned on; otherwise damage may occur.

Initialize the Network Image Express Card. To initialize, turn on the scanner while holding down the Reset button of the Network Image Express Card for 10 seconds until the red status light and green data light turn on.

Note:
Be sure to initialize the Network Image Express Card when you insert or re-insert it in the scanner.

Turn off the scanner.
