Understanding EPSON TWAIN Pro Features / Using the EPSON TWAIN Pro Main Dialog Box

Using the Settings Dialog Box

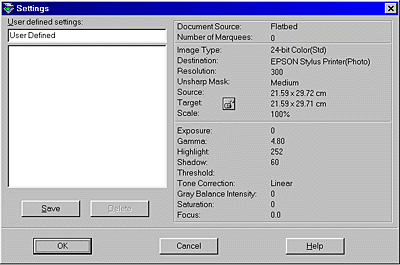

Clicking the Settings button opens the Settings dialog box, where you can view all current settings, save the current settings with a new name, and apply previously-saved custom settings. This button is only available when the Preview window is open.

Note:

The preset settings for using film holders may appear in the User defined settings list when the optional Transparency Unit is installed.

Only custom settings related to the currently selected Document Source appear in the User defined settings list.

To save the current settings, type a new name in the User defined settings box, then click Save. To delete a setting from the list, select the setting name in the list, then click Delete.

To apply saved settings, select a setting name from the list, then click OK.

To restore the previous settings, click Cancel.
