Connecting the Card and Scanner to a Network Hub

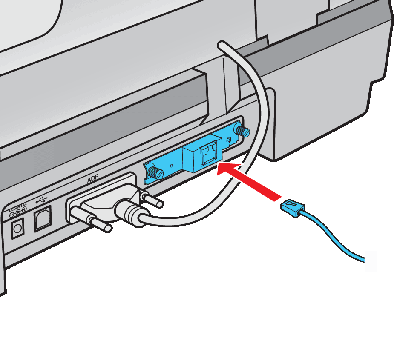

Connect an Ethernet cable (Category 5 shielded twisted-pair cable) to the RJ-45 connector on the Network Image Express Card and connect the other end to your network hub.


Caution:

  • You must use a Category 5 shielded twisted-pair cable to connect the Network Image Express Card to prevent a malfunction.

  • Do not connect the Network Image Express Card directly to a computer; connect it only to a network hub.

  • Do not connect or disconnect the network cable when the scanner is turned on.

  • To use the Network Image Express Card, disconnect the USB cable from the scanner; otherwise the scanner may not work properly.

  • Do not disconnect the USB cable while an Ethernet cable is already connected to the RJ-45 connector on the Network Image Express Card.

Turn on the scanner.

Check the lights on the Network Image Express Card. Initialization is in progress while the red status light and the green data light are on. When the yellow status light comes on, initialization is complete. When the red status light is on and the green data light is flashing, the card is receiving data.
