Removing and Installing Ink Cartridges

Make sure you have your replacement cartridges handy before you begin. You must install new cartridges immediately after removing the old ones.
Caution:
Leave your old cartridges in the printer until you are ready to replace them to prevent the print head nozzles from drying out. Do not open ink cartridge packages until you are ready to install the ink. Cartridges are vacuum packed to maintain reliability.
  1. Turn on your product.
  2. Lift up the scanner unit.


    Caution:
    Do not move the print head by hand; otherwise, you may damage your product. Do not touch the flat white cable inside the printer.
  3. Press the  stop button.
    • If a cartridge is low or expended, the print head moves that cartridge to the indicator position. Press the  stop button again to check for additional low or expended cartridges. When all cartridges have been identified, the print head moves to the replacement position.


    • If no cartridges are low or expended, the print head does not move. If you want to replace a cartridge before it is low or expended, press the  stop button for 6 seconds. The print head moves to the replacement position.
  4. Squeeze the tab on the cartridge and lift the cartridge straight up to remove it.


    Note: Dispose of used cartridges carefully. Do not take the used cartridge apart or try to refill it.
    Warning: If ink gets on your skin, wash it thoroughly with soap and water. If ink gets into your eyes, flush them immediately with water. If ink gets into your mouth, spit it out and see a doctor right away. Keep ink cartridges out of the reach of children.
  5. Before opening the new cartridge package, shake it gently four or five times.


    Caution:
    Do not shake the cartridges after opening the packages, or ink may leak.
  6. Remove the cartridge from the package.
    Caution:
    Do not touch the green chip on the cartridge. Install the new cartridge immediately after removing the old one; if you do not, the print head may dry out and be unable to print.
  7. Remove the yellow tape from the bottom of the cartridge.


    Caution:
    Do not remove any other labels or seals, or ink will leak.
  8. Insert the new cartridge into the holder and push it down until it clicks into place.

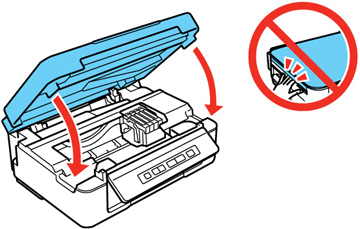

  9. Lower the scanner unit.


  10. Press the  stop button. The print head moves to its home position and the printer starts charging the ink. This takes about 2 minutes. When the  power light stops flashing and remains on, ink charging is finished.
    Caution:
    Never turn off the product while the power light is flashing or you will waste ink.
    Note: If the  ink light is on after the print head moves to its home position or the  power light is still flashing 3 minutes after replacing a cartridge, an ink cartridge may not be installed properly. Press the  stop button, then press the ink cartridge down until it clicks into place.

If you remove a low or expended ink cartridge, you cannot re-install and use the cartridge.

Caution:
If you remove an ink cartridge for later use, protect the ink supply area from dirt and dust and store it in the same environment as the printer. The valve in the ink supply port is designed to contain any excess ink, but do not touch the ink supply port or surrounding area. Always store ink cartridges with the label facing up; do not store cartridges upside-down.
