Installing the Wireless LAN Module

To use the PowerLite 1761W/1771W/1776W over a wireless network, install the Epson 802.11b/g/n wireless module in the projector. Do not install any other type of wireless module.
Caution:
Never remove the module while its indicator light is green or flashing, or while you are projecting wirelessly. You may damage the module or lose data.
  1. Turn off the projector and unplug the power cord.

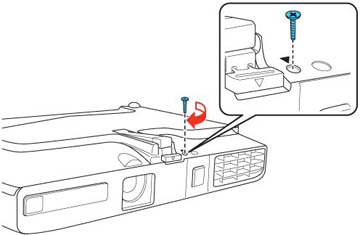

  2. Turn the projector over and remove the screw securing the LAN module cover.

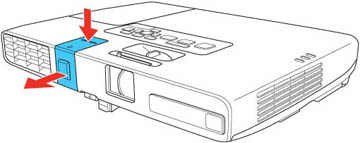

  3. Remove the wireless LAN module cover.


  4. Insert the wireless LAN module into the port.

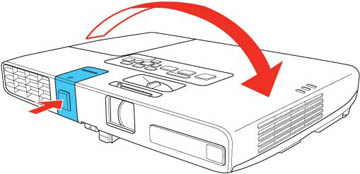

  5. Replace the wireless LAN module cover, and then turn over the projector.


  6. Secure the wireless LAN module cover using the screw you removed.


  7. Plug in and turn on the projector.
