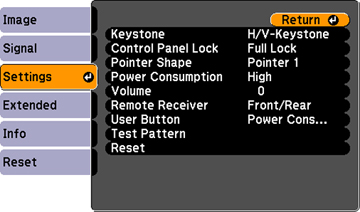

Options on the Settings menu let you customize various projector features.
Setting | Options | Description |
---|---|---|
Keystone | H/V-Keystone
Quick Corner |
Adjusts image shape to rectangular
(horizontally and vertically)
H/V Keystone: lets you manually correct horizontal and vertical sides, or turn automatic correction or the horizontal keystone slider on or off Quick Corner: select to correct image shape and alignment using an on-screen display |
Control Panel Lock | Full Lock
Partial Lock Off |
Controls projector button locking to secure the
projector
Full Lock: locks all buttons Partial Lock: locks all buttons except the power button Off: no buttons locked |
Pointer Shape | Three shapes available | Changes the shape of the remote control pointer feature |
Power Consumption | High
Low |
Selects the brightness mode of the projector
lamp
High: sets maximum lamp brightness Low: reduces lamp brightness and fan noise, and saves power and lamp life |
Volume | Varying levels available | Adjusts the volume of the projector’s speaker system |
Remote Receiver | Front
Rear Front/Rear Off |
Limits reception of remote control signals by the selected receiver; Off turns off all receivers |
User Button | Power
Consumption
Info Progressive Closed Caption Test Pattern Resolution 3D Brightness |
Assigns a menu option to the User button on the remote control for one-touch access |
Test Pattern | On
Off |
Displays a test pattern to assist in focusing and zooming the image and correcting image shape (press Esc to cancel pattern display) |
