Replacing the Air Filter

You need to replace the air filter in the following situations:
Note: Along with the message, you will also see an indicator like this. Projector 1 represents the commander and projector 2 represents the receiver. The green arrow points to the projector that the message is referring to.


You can replace the air filter while the projector is mounted to the ceiling, if necessary. The illustrations here show the projector placed on a table.
Note: The illustrations in this section show how to replace the commander projector's air filter, but you can replace the receiver projector's air filter using the same steps.
  1. Turn off the product and unplug the power cords.

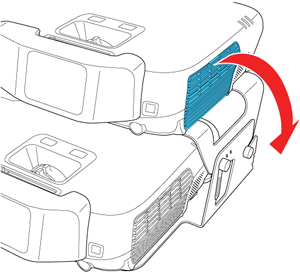

  2. Place your finger into the groove at the top of the air filter cover and pull to open the cover.


  3. Pull the air filter out of the projector.


    Note: Air filters contain ABS resin and polyurethane foam. Dispose of used air filters according to local regulations.

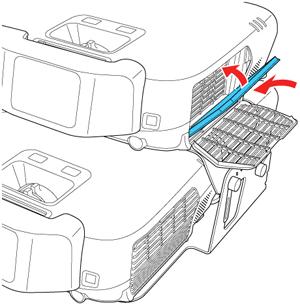

  4. Place the new air filter in the projector as shown and push gently until it clicks into place.


  5. Close the air filter cover.
