Separating the Projectors

You can deactivate the stack mode setting and separate the projectors for use individually.
  1. Turn on the product.
  2. Press the Menu button.
  3. Select the Extended menu and press Enter.

  4. Select the Operation setting and press Enter.
  5. Select the Stack Mode setting and press Enter.
  6. Select Off and press Enter.
  7. Press Menu or Esc to exit the menus.
  8. Turn off the product.
  9. Unplug the power cords.
  10. Disconnect the USB cable.

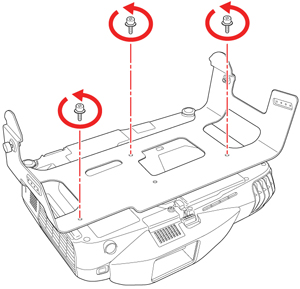

  11. Remove the stacking mount angle adjustment screws (on both sides).

  12. Loosen the stacking mount connector screws (on both sides).

  13. Separate the commander and receiver projectors.

  14. Remove the stacking mounts from the projectors.

When the projector's Stack Mode setting is set to Off, it functions like a PowerLite W16 projector, but without 3D capabilities.

See the PowerLite W16 User's Guide for instructions when using the projector with stack mode deactivated.
