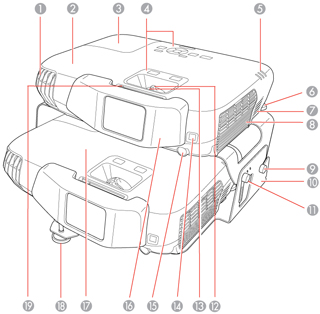

Projector Parts - Front/Top

Note: The parts listed here are available on both projectors.


1 Exhaust vent
2 Commander projector
3 Lamp cover
4 Control panel
5 Projector status lights
6 Security cable attachment point and Kensington security lock slot
7 Speaker
8 Air filter cover and intake vent
9 Stacking mount connector
10 Stacking mount
11 Stacking mount angle adjustment
12 Zoom ring
13 Focus ring
14 Screen Fit sensor
15 Remote receiver
16 Polarizing filter
17 Receiver projector
18 Front adjustable foot
19 A/V Mute slide lever
Related tasks
Installing a Security Cable
Related references
Projector Light Status
