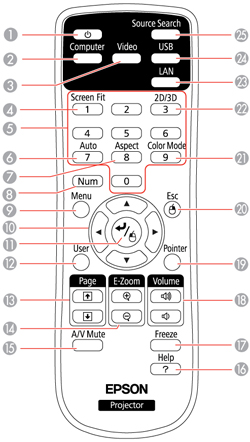

| 1 | Power button |
| 2 | Computer button (cycles through connected computer sources) |
| 3 | Video button (cycles through connected video sources) |
| 4 | Screen Fit button (superimposes projector images) |
| 5 | Numeric buttons (enter numbers) |
| 6 | Auto button (automatically adjusts position, tracking, and sync settings) |
| 7 | Aspect button (selects the image aspect ratio) |
| 8 | Num button (when held down, switches numeric buttons to number function) |
| 9 | Menu button (accesses projector menu system) |
| 10 | Arrow buttons (move through on-screen options) |
| 11 | Enter button (selects options) |
| 12 | User button (customizable for different functions) |
| 13 | Page up/down buttons (button is not functional when the projectors are being used together in a stacked configuration) |
| 14 | E-Zoom +/– buttons (zoom into and out of the image) |
| 15 | A/V Mute button (turns off picture and sound) |
| 16 | Help button (accesses projector help information) |
| 17 | Freeze button (stops video action) |
| 18 | Volume up/down buttons (adjust speaker volume) |
| 19 | Pointer button (button is not functional when the projectors are being used together in a stacked configuration) |
| 20 | Esc button (cancels/exits functions and controls wireless mouse functions) |
| 21 | Color Mode button (selects display modes) |
| 22 | 2D/3D button (activates 3D mode) |
| 23 | LAN button (button is not functional) |
| 24 | USB button (button is not functional when the projectors are being used together in a stacked configuration) |
| 25 | Source Search button (searches for connected sources) |
