Connecting to an S-Video Video Source

If your video source has an S-Video port, you can connect it to the projector using optional S-Video cables and a splitter that supports S-Video signals.
Note: If your video source has two S-Video ports, you may not need a splitter.

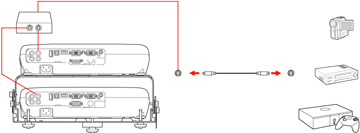

  1. Connect an S-Video cable between your video source's S-Video output port and the splitter.
  2. Connect an S-Video cable between each projector's S-Video port and the splitter.


Note: If you connected a game console, it may take a few seconds for your image to appear. To reduce the lag time, set your game console's input signal to a progressive signal of 480p or 720p. See your game console documentation for instructions.
