Scanning Using the Automatic Document Feeder

When you scan documents with the ADF, it is best to use Office Mode.


Note:
  • Do not open the ADF while you are scanning or you will see an option error and paper feeding will stop.

  • Do not load mixed-size document pages when you are scanning only a portion of each page.

Make sure you installed the ADF and loaded your document in it. See Loading Documents in the Automatic Document Feeder for instructions.

Start EPSON Scan. See one of these sections for instructions:

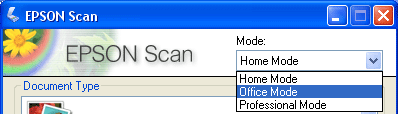

Click the arrow in the Mode box at the top right of the EPSON Scan window. Then select Office Mode.

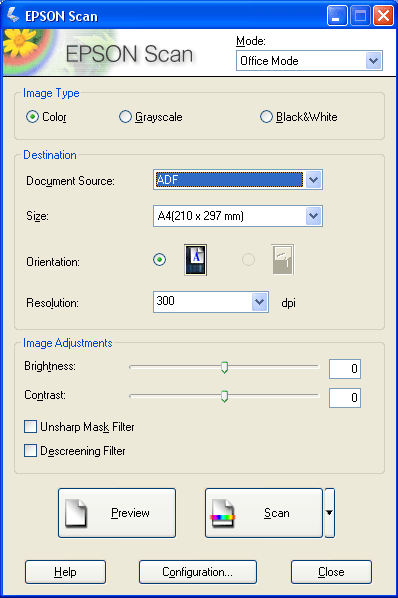

    You see the Office Mode window:

Select whether the Image Type of your document pages is Color, Grayscale, or Black&White.

Select ADF as the Document Source setting.


Note:

If you loaded mixed-size sheets at one time, select Auto Detect instead.

Select the size of your original document as the Size setting.

Click the arrow next to the Resolution list and select the number of dots per inch at which you want to scan. See the table below for some guidelines:

    What you will do with the scanned image

    Suggested scan resolution

    Send via e-mail, upload to web, view only on the screen

    96 to 150 dpi

    Print, convert to editable text (OCR)

    300 dpi

    Fax

    200 dpi

Click the Preview button toward the bottom of the EPSON Scan window.

    The ADF loads your first document page, then EPSON Scan prescans it and displays it in the Preview window. The ADF then ejects your first page.


Note:

The ADF also loads and ejects your second page without scanning it. Place your document pages back in order after they are ejected.

In the Preview window, draw a marquee (a line marking the scan area) around the portion of your document page that you want to scan.

Change any necessary Image Adjustment settings as listed in the table below.

    Setting

    Available mode(s) and description

    Brightness

    Adjusts the overall image lightness and darkness.

    Contrast

    Adjusts the difference between the light and dark areas of the overall image.

    Unsharp Mask Filter

    Turn on to make the edges of image areas clearer for an overall sharper image. Turn off to leave softer edges.

    Descreening Filter

    Removes the rippled pattern that can appear in subtly-shaded image areas, such as in skin tones. Also improves results when scanning magazine or newspaper images which include screening in their original print processes.

    Threshold

    Adjusts the level at which the black areas in text and line art are delineated, improving text recognition in OCR programs. This setting is available only when the Image Type is set to Black&White.

Click the Scan button to scan your document pages.

What happens next depends on how you started your scan.

  • If you started your scan by running EPSON Scan as a standalone program, you see the File Save Settings window. See Selecting File Save Settings for details.

  • If you started your scan from a scanning program such as ABBYY FineReader, your scanned pages open in the program window. Click Close to close the EPSON Scan window and view your scanned pages in the program.

  • If you started your scan from EPSON File Manager, you see thumbnails of your scanned images in the EPSON File Manager window.


Note:

If you do not see your scanned images, select the folder in which you saved them on the left side of the EPSON File Manager window.

    If you want to use your scanned images in one of the EPSON Creativity Suite project programs, click the checkbox beneath each image thumbnail. The images are displayed in the My Selection box on the bottom of the EPSON File Manager window.

    Then select one of these project icons at the top of the window:
