Lights and Start Button
The scanner has one button for scanning operations. The scanner light indicates the scanner’s status.

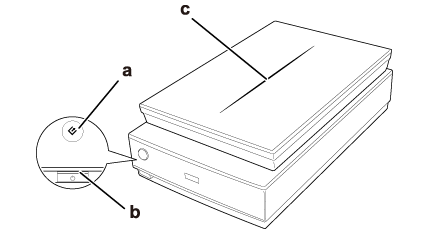

a.
Start button
b. scanner light
c. scanner cover light
Start buttonb. scanner light
c. scanner cover light
Lights
The scanner light is located above the
power button, and the scanner cover light is on the top of the scanner cover.
power button, and the scanner cover light is on the top of the scanner cover.|
Light
|
Color
|
Indicator Status
|
Meaning
|
|
Scanner light
|
Green
|
 On |
Ready to scan images.
|
 Flashing |
Initializing or scanning.
|
||
|
Red
|
 Flashing |
An error has occurred. See The Status Light Is Flashing for more information.
|
|
|
—
|
 Off |
The scanner is off.
|
|
|
Scanner cover light
|
Blue
|
 On |
Scanning transparencies (such as film or slides).
|
|
—
|
Off |
Scanning reflective documents (such as documents and photographs).
|
Button
Before using the Start button, make sure you have installed Epson Scan.
Start button, make sure you have installed Epson Scan.|
Button
|
Function
|
|
Start |
Epson Scan starts.
|
Note for Mac OS X 10.5.8 users:|
The
Start button is not supported. To start Epson Scan, see Using the Epson Scan Icon for instructions. |
