Other Information / Other Information

Printer Parts

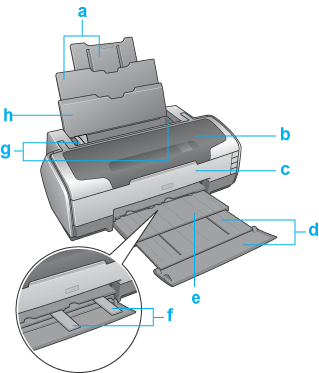

a. Paper support extension: Extends the paper support to support large sheets, such as A3, loaded into the sheet feeder.

b. Printer cover: Covers the printing mechanism. Open only when installing or replacing ink cartridges, or when checking that roll paper or single sheets are feeding correctly.

c. CD/DVD tray guide: Open only when printing a CD or DVD.

d. Output tray extension: Extends the output tray to support large sheets of paper, such as A3.

e. Output tray: Receives the ejected paper.

f. Roll paper support: Supports roll paper as it is ejected from the printer.

g. Edge guides: Help to load the paper straight into the printer. Adjust the left edge guide to fit the width of your paper.

h. Paper support: Supports the paper loaded in the sheet feeder.

a. Roll paper edge guide: Helps load roll paper or single sheets of paper straight into the rear manual feed slot.

c. USB port: Used to connect the USB cable to the computer and the printer.

d. FireWire (IEEE 1394 ) port: Used to connect the FireWire cable to the computer and the printer.

e. Roll paper holder: Attaches to the printer and holds the roll paper.

f. Roll paper knob: Turn to roll up the roll paper.

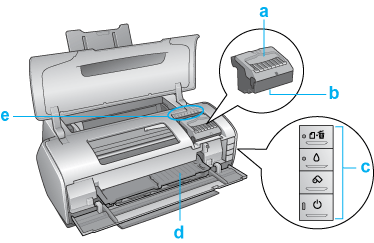

a. Cartridge cover: Hold the ink cartridges in place. Open only when installing or replacing ink cartridges.

b. Print head: Delivers ink to the page.

c. Control panel: Controls various printer functions. See the next section for details.

d. CD/DVD tray guide: Feeds the CD/DVD tray into the printer. Use only when printing a CD/DVD.

e. Ink out lights: Indicate when ink cartridges are empty or nearly empty.
