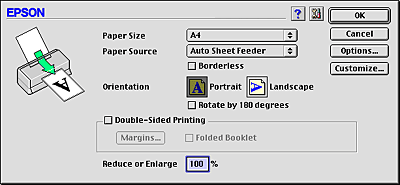

Page Setup Dialog Box

Paper Size

Select the paper size that you want to use. You can also add a custom paper size. To add your own paper size setting, see the following.

Defining a custom paper size

Paper source

Select Auto Sheet Feeder to print on normal paper.

Select Manual Feed to print on a CD/DVD.

Borderless

Check this box when you want to print to all four edges of the paper, without margins.

Expansion button:
When the Borderless check box is selected, the Expansion button becomes available. Click the Expansion button to open the Borderless Expansion dialog box, where you can control the amount of the image that extends beyond the edges of the paper during borderless printing.

Borderless Expansion slider:
Using the slider on the Borderless Expansion dialog box, you can control the amount of the image that extends beyond the edges of the paper during borderless printing.

For most print jobs, selecting Max is recommended. Moving the slider towards Min decreases the amount of the image that extends beyond the edges of the paper; however, as this amount decreases, margins may begin to appear on one or more sides of the paper.
See Borderless Printing

Orientation

Select Portrait (tall) or Landscape (wide) to change the orientation of your printout.

Rotate by 180 degrees: Prints the pages rotated 180 degrees.

Double-Sided Printing

Select the Double-Sided Printing check box to print on both sides of the paper. Select the Folded Booklet check box to make single-fold booklets.
See Double-Sided Printing

Reduce or Enlarge

Use this setting to reduce or enlarge the print size of your document between 25% and 400%.
