Maintenance

Transporting This Product

If you need to transport this product, carefully repack it using the original box (or a similar box that this product fits snugly into) and packing materials as follows:

Caution:

When storing or transporting this product, avoid tilting it, placing it vertically or turning it upside down; otherwise ink may leak from the cartridge.

Leave the ink cartridges in their installed positions when transporting this product; removing the cartridges for transportation may damage this product.

Remove all paper from the trays and make sure that this product is off.

Open the scanner unit and make sure that the print head is in the home position on the right. Close the scanner unit.

Open the document cover and slide the transportation clamp, as shown in the illustration below, to lock the scanner carriage.

Unplug the power cord from the electrical outlet and the USB cable from your computer.

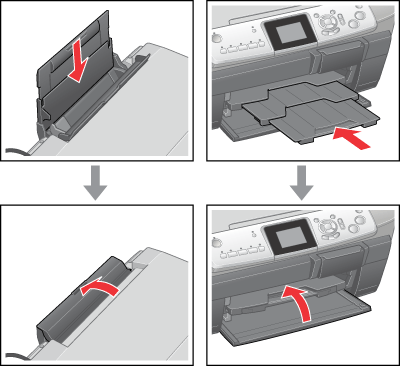

Close the CD/DVD guide if it is open. And then close the paper support, feeder guard, output tray, and front tray.

Attach the protective materials to both sides of this product, and then repack this product and attachments in the box.

Note:

Be careful not to catch the document cover's cable on anything.

Keep this product on a flat surface to protect it from shocks during transportation.

Note:

Do not forget to remove the protective materials and tape from this product before using it again.
