How To / Maintenance

Transporting the Stylus Scan

If you need to transport your Stylus Scan, carefully repack it using the original box and packing materials as follows:

Make sure that the Stylus Scan power is off.

Caution:

Leave the ink cartridges installed during transport. Removing the cartridges for transport may result in damage.

Open the document cover.

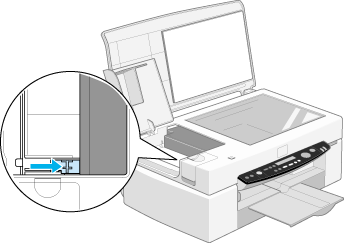

Open the maintenance cover and lock the scanner carriage.

Close the maintenance and document covers.

Unplug the power cord from the electrical outlet; then disconnect the interface cable.

Remove all paper from the sheet feeder, and then remove the paper supports.

Push in the output extension tray.

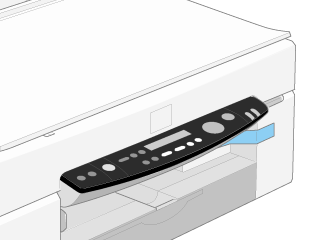

Secure the ink cartridge holder to the body with tape as shown below.

Attach the protective materials to both sides of the Stylus Scan.

Repack the Stylus Scan and power cord in the original box.

Keep the Stylus Scan level during transport.
