Printer / Paper Handling

Loading Envelopes

When printing on envelopes, please note the following:

You can load up to 10 envelopes into the sheet feeder.

Note:

The folding quality and thickness of envelopes vary widely. If the total thickness of the stack of envelopes exceeds 10 mm, press the stack flat before loading.

Set the adjust lever to the "+" position.

Note:

Don't forget to return the adjust lever to the "0" position before printing or copying on media of standard thickness. Leaving the lever in the "+" position may cause gaps in the printed image.

When the adjust lever is in the "+" position, make sure the High Speed setting in the printer driver's Advanced dialog box is off. To turn this option off, you may also need to change the Print Quality setting.

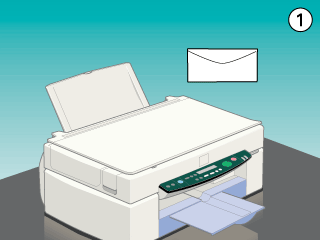

Load envelopes flap edge first with the flap side down, as shown in the illustration.

Do not use envelopes that are curled or folded. Make sure to flatten the envelope flaps before loading. Also avoid using envelopes that are too thin as they may curl during printing.

Select Plain Paper as the Media Type setting on the printer driver.
